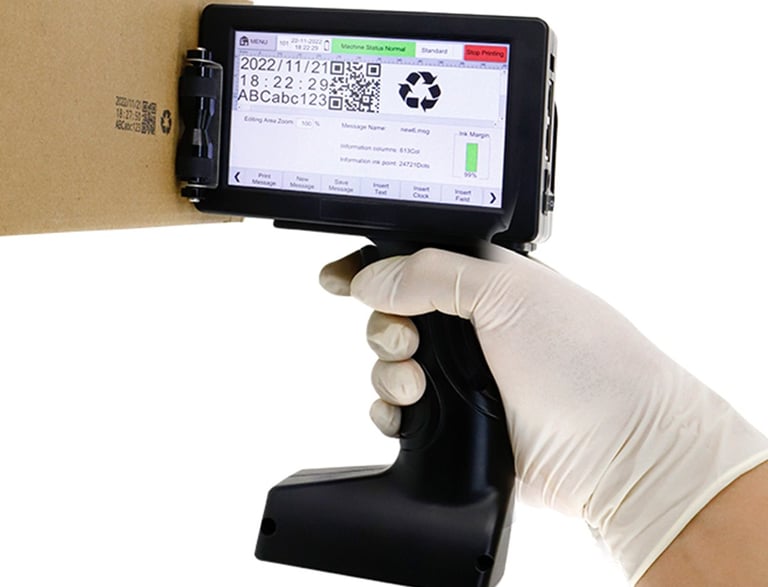

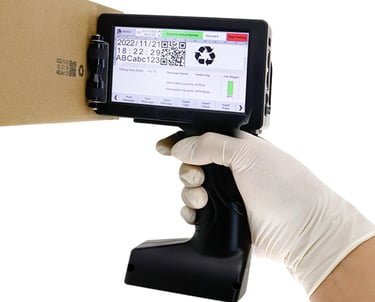

T110-H Handheld Inkjet Printer

• Portable handheld inkjet printer

• Ergonomically designed comfortable handle, light and compact size, easy to carry, suitable for various use scenarios.

• Handheld and online integrated, suitable for various production and operation environments, with strong flexibility.

• Replaceable rechargeable large-capacity battery to ensure long standby and working time.

Printing Parameters

Printing Distance: 3~30mm

Nozzle Type: Thermal foamable head TIJ2.5

Printing Accuracy: 150DPI / 300DPI / 600DPI

Print Height: The minimum print 1mm / maximum print height 12.7mm

Printing From: Best print from 1 - 2 mm

Print Content: Multi - language character / dynamic two - dimensional code / barcode / images / serial number / date / counter / variable dynamic database / RS232 receive real - time data printing

Printing Material: Cardboard / plastic / metal / plate / pipe / stone / cable / electronic components / auto parts / industrial chemical packaging / pharmaceutical food gift boxes

Ink Type: Aqueous / solvent and 42ml cartridge CISS

Ink Color: Black / white / red / yellow / blue / green / stealth / UV

Cartridge Chip: Contactless chip RFID tags, automatic identification and recording ink of the ink remaining parameters

Machine Parameters

Operating System: Embedded Linux operating system

The Main Hardware: American TI AM3358 industrial - grade CPU / USA Xilinx Spant6 industrial - grade FPGA / TIJ dedicated ASIC chip

Communication Interface: USB, RS232

External Interface: Photocell / encoder / reverse inverting control

Supported Languages: Multi - language (Chinese / English / Arabic / Danish / German / Russian / French / Finnish / Korean / Norwegian / Portuguese / Japanese / Spanish / Italian etc...)

Power Parameters:100 - 240V AC input / 12.6V 3A DC output

Machine Materials: ABS + UV Spray

Machine Specifications: 220mm140mm95mm:

Working Environment: Temperature of 0 - 45 °C / humidity of 30 - 70% Rh

• Product Features

• Built-in integrated nozzle design, easy to carry.

• The maximum printing height can reach 12.7mm, and any number of lines can be printed within the printing height range.

• Handheld and online printing, dual use, one machine for multiple occasions.

• Snap-on ink cartridge installation, firm and reliable, easy to replace.

• Ergonomically designed comfortable handle, suitable for long-term use.

• Built-in integrated hidden encoder, small size, not easy to be damaged by collision, and can accurately calculate the speed of sliding printing.

• The interchangeable roller structure provides a variety of shapes and sizes to adapt to the surface rolling of various products to ensure the best printing effect.

• Replaceable rechargeable large-capacity battery, a variety of models to provide options to ensure long standby and working time.

• Software Features

• The stable Linux security operating system, combined with the self-developed high-speed printing management system, can achieve an ultra-high-speed printing response time within 10 milliseconds per product.

• High-quality content, high-speed printing, up to 406m / min.

• One object, one code. Identification data printing, anti-counterfeiting and traceability management, network-related product information can be queried.

• Real-time calculation of printing cost function, directly display the printing cost of each message, which is convenient for manufacturers to calculate prices.

• Support GS1 DataMatrix, serial format to meet the printing requirements of various industries

• Compatible with a variety of weighing protocols, can be connected with multiple manufacturers of different models of electronic scales, and directly print the weight and price barcodes in line with supermarkets.

• Support access to wireless keyboard and mouse, flexible control interface function.

• Support scanner input information, not only can quickly enter information, but also to ensure the accuracy of information.

• 1-6 gray scale adjustment, plus black printing effect, the display is clearer when printing different substrates.

• Unique encoder stepless frequency conversion function, which can adjust the printing width as required.

• The original nozzle double-row alternating mode, the left and right rows of ink cartridges are alternately printed to prevent nozzle clogging and effectively extend the life of the ink cartridges.

• Hardware Features

• Using AM3358 industrial-grade high-performance CPU and Spartan6 industrial-grade high-computing FPGA as the core control chip, it can easily process various variable printing data in the case of high-speed printing.

• Stable hardware layout, while using anti-interference industrial electronic components, can still guarantee excellent printing effects in various interference harsh environments.

• High-precision SMT patching process, detailed DIP plug-in post-solder, multi-dimensional PCBA finished product testing, to ensure the high quality and reliability of the hardware from all aspects of the process.

• The integrated motherboard design is more reliable than the letter board design, and the data transmission interaction is faster, more stable, and safer.

• Other Features

• Related content can be customized according to needs.
