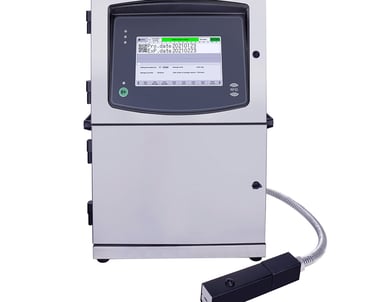

S400 Plus Series Continuous Inkjet Printer
Easy operation with 10.1"large screen
One-key start and stop precise control
Independent module maintenance is simple
Automatic cleaning to prevent clogging
Classic ink circuit is stable and reliable
Printing material: Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box
Ink color: Black, white, red, blue, green, invisible
Printing Distance: 3~30mm
Printhead duct: 3m/6m
Nozzle specifications: 40u、50u、60u、75u
Printing height: 2-16mm
Printing Lines: 1-5 lines
Max.printing speed: 384m/min (5 dots in 1 line, 0.5 dot spacing)
Counter: 24 independent counters
Ink type: High adhesion,migration resistance,high temperature resistance, special for glass, permeability,food gradeoil resistance
Font: 5X6L7X6L7X10L9X8L9X11L 11X11L16X16L24X24L 32X32L 11X11B 16X16B 24X24B 32X32B
Print content: Text time,date(Julian year),logo,shift,SN, dynamic barcode/OR code,dynamic serial data, dynamic database (additional content can be added as required)
Main hardware: American TI AM3358 industrial grade CPU,American Xilinx Spartan-6 industrial grade FPGA
Support language: Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)
Power parameters: Input 100-240V AC
Rated power: 150W
Machine material: 304 stainless steel
Communication Interface: Network port, USB, RS232
Related certification : RoHS、CE、BIS
Display screen: 10.1-inch color display industrial touch screen
Operation system: Embedded Linux security operating system
Protection level: IP65
External interface: Photocell, encoder, alarm light, information control
Memory: 256M
Machine specifications: 550mmx289.92mmx730mm(Length*width*height
Working Environment: Temperature0~45C/Humidity 30~70%Rh
New weight: 30kg
Printing Parameters
Machine Parameters
The IP55 protection level can still work stably in various harsh environments such as dust and humidity, ensuring high-quality printing effects.
The print head is equipped with an ink line observation lens. The stroboscopic effect can be used to observe the state of the ink line when it passes through the charging tank.
Inkjet printer is adopt 304 stainless steel outer box, the structure is firm, resistant to corrosion, oxidation and not easy to rust.
The detachable nozzle design can change the required nozzle size according to the actual use, and it is convenient for maintenance.
You can choose to connect to the factory air source or add an internal air pump to provide positive pressure air to the nozzle to prevent external pollutants from entering the nozzle and ensure the safety of the ink droplet charging process and the cleanliness of ink recovery. (The internal air pump uses the air in the machine to ensure that the air source is clean and clean)
This Continuous inkjet printer has extremely simple operation interface allows the operator to quickly learn to use and reduce the learning cost. With humanized functional logic, field prompts and pre-defined format selection, it can avoid misoperation and ensure the accuracy of the printing process.
One-click start-stop function is not only easy to operate, but also shortens maintenance time and reduces maintenance costs.
A variety of counters are available, such as total code counting, product counting, serial number counting, and repeated counting.
Support automatic flip, upside down, height and width adjustment, information rotation, character bolding and other printing information adjustment, flexibly adapt to various printing usage scenarios.
Multi-level password protection, user-defined user information and permissions can be customized to ensure the safety of operation.
Product Features
Software Features
The real-time monitoring system of solvent and ink volume reminds the user of the remaining amount of solvent and ink, which is convenient for production planning.
The ink viscosity management system automatically adds the diluent according to the parameter settings and actual usage, and intelligently controls the optimal viscosity value to maintain the best printing quality.
Ink temperature monitoring system, according to the parameter settings and the use of ambient temperature, automatically correct the temperature value of the printing ink to maintain the best printing quality.
Ink automatic emptying function, one-key operation can empty the pipeline ink, convenient for maintenance and replacement parts, one-key restart can automatically empty the pipeline air, filled with ink, easy to restart the machine.
The automatic cleaning function of the nozzle ensures that the nozzle will not be blocked after a long time of shutdown, and supports the rapid start of the machine.
This S4000 Plus Inkjet Printer has independent pump and valve ink path control system can realize precise control of local pipelines and ensure the stability of printing. At the same time, it is more conducive to determining machine failures, shortening maintenance time and reducing maintenance costs.
The innovative double stirring function prevents the pigment ink from settling due to long-term stationary.
The recycling ink tube is close to the bottom of the ink cartridge, and the impact force when recycling the ink causes the bottom to oscillate to achieve the impact stirring effect. A precision motor is installed under the ink tank to provide power for rotation to achieve the effect of swirling stirring. The combination of double agitation methods prevents static precipitation, so that each ink droplet ejected is mixed and balanced, and the printing effect is excellent.
S400 Plus Continuous inkjet printer with the condenser and solvent recycling system, the solvent utilization rate can be increased by 15% -30%, thereby reducing operating costs by 15% -30%.
Signal analysis and processing, can be pre-prompted by the high alarm light of the production line.
Related content can be customized according to needs.
