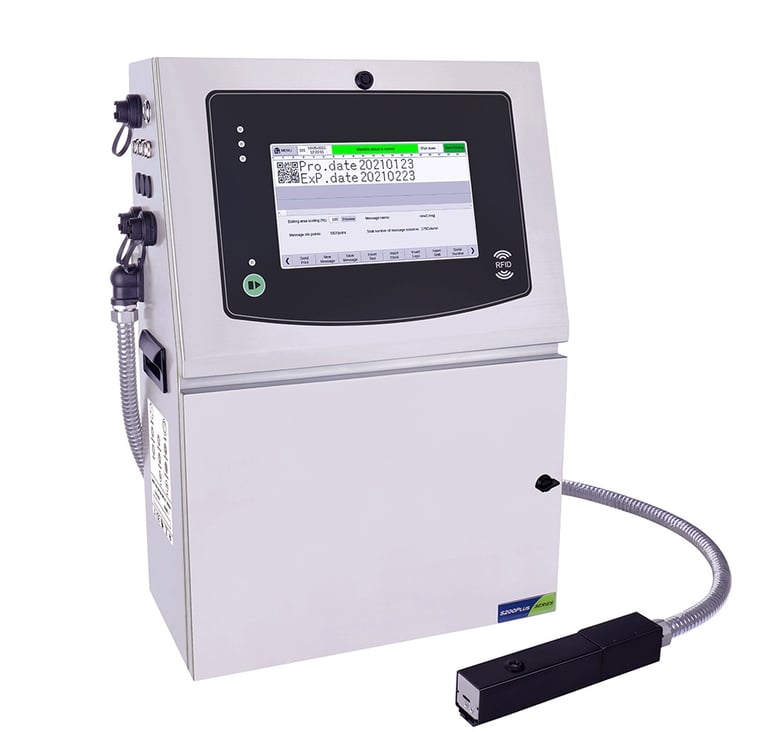

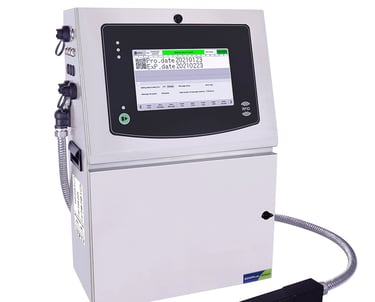

S200 plus Series Continuous Inkjet Printer

• Easy operation with 10.1"large screen

• One-key start and stop precise control

• Independent module maintenance is simple

• Automatic cleaning to prevent clogging

• Classic ink circuit is stable and reliable

Printing Parameters

Catheter length: 3m/6m

Printing Lines: 1~5lines

Printing Material: Carton, Plastic, Metal, Boardinq, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical /Food / Gift box

Nozzle Specifications: 50u、60u、75u

Printhead duct: 3m/6m

Printing Distance: 2-16mm

Printing Height: 3-30mm

Max.printingspeed: 384m/min (5 dots in 1line, 0.5 dot spacing）

Counter: 24 independent counters

Ink Color: Black,red,blue,yellow,invisible

Ink Type: High adhesion, Migration resistance, High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance

Print Content: Text time.date(Julian year)lopo,shift,SN, dynamic barcode/OR code,dynamic serial data, dynamic database(additional content can be added as required)

Font: 5x6L 7x6L 7x10L 9x8L 9x11L 11x11L 16x16L 24x24L 32x32L 11x11B 16x16B 24x24B 32x32B

Machine Parameters

Operating System: Embedded Linux security operating system

Display Screen: 10.1-inch color display, industrial touch screen

Communication Interface: Network port, USB, RS232

Protection Level: IP55

Power Parameters: Input 100-240V AC

Rated Power: 150W

Memory: 256M

Working Environment: Temperature 0-45C/Humidity 30-70%Rh

Related Certification: RoHS、CE、BIS

Support Language: Support more than 40 national lanquages ( Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc)

Machine Material: SUS 304 stainless steel

Machine Specifications: 485mmx242mmx664mm(Length*width*height)

Net Weight: 23kg

Main Hardware: American TIAM3358 industrial grade CPU,American Xilinx Spartan-6 industrial grade FPGA

External Interface: Optical sensor, encoder,light alarm,reverse and upside down control, serial number input/output and control, external printing information selection

Product Features

• The IP55 protection level can still work stably in various harsh environments such as dust and humidity, ensuring high-quality printing effects.

• The print head is equipped with an ink line observation lens. The stroboscopic effect can be used to observe the state of the ink line when it passes through the charging tank.

• Inkjet printer is adopt 304 stainless steel outer box, the structure is firm, resistant to corrosion, oxidation and not easy to rust.

• The detachable nozzle design can change the required nozzle size according to the actual use, and it is convenient for maintenance.

  • You can choose to connect to the factory air source or add an internal air pump to provide positive pressure air to the nozzle to prevent external pollutants from entering the nozzle and ensure the safety of the ink droplet charging process and the cleanliness of ink recovery. (The internal air pump uses the air in the machine to ensure that the air source is clean and clean)

Software Features

• This Continuous inkjet printer has extremely simple operation interface allows the operator to quickly learn to use and reduce the learning cost. With humanized functional logic, field prompts and pre-defined format selection, it can avoid misoperation and ensure the accuracy of the printing process.

• One-click start-stop function is not only easy to operate, but also shortens maintenance time and reduces maintenance costs.

• A variety of counters are available, such as total code counting, product counting, serial number counting, and repeated counting.

• Support automatic flip, upside down, height and width adjustment, information rotation, character bolding and other printing information adjustment, flexibly adapt to various printing usage scenarios.

• Multi-level password protection, user-defined user information and permissions can be customized to ensure the safety of operation.

Other Features

• S200 Plus Continuous inkjet printer with the condenser and solvent recycling system, the solvent utilization rate can be increased by 15% -30%, thereby reducing operating costs by 15% -30%.

• Signal analysis and processing, can be pre-prompted by the high alarm light of the production line.

• Related content can be customized according to needs.

Hardware Features

• The real-time monitoring system of solvent and ink volume reminds the user of the remaining amount of solvent and ink, which is convenient for production planning.

• The ink viscosity management system automatically adds the diluent according to the parameter settings and actual usage, and intelligently controls the optimal viscosity value to maintain the best printing quality.

• Ink temperature monitoring system, according to the parameter settings and the use of ambient temperature, automatically correct the temperature value of the printing ink to maintain the best printing quality.

• Ink automatic emptying function, one-key operation can empty the pipeline ink, convenient for maintenance and replacement parts, one-key restart can automatically empty the pipeline air, filled with ink, easy to restart the machine.

• The automatic cleaning function of the nozzle ensures that the nozzle will not be blocked after a long time of shutdown, and supports the rapid start of the machine.

• This S200 plus Inkjet Printer has independent pump and valve ink path control system can realize precise control of local pipelines and ensure the stability of printing. At the same time, it is more conducive to determining machine failures, shortening maintenance time and reducing maintenance costs.

• The innovative double stirring function prevents the pigment ink from settling due to long-term stationary.

• The recycling ink tube is close to the bottom of the ink cartridge, and the impact force when recycling the ink causes the bottom to oscillate to achieve the impact stirring effect. A precision motor is installed under the ink tank to provide power for rotation to achieve the effect of swirling stirring. The combination of double agitation methods prevents static precipitation, so that each ink droplet ejected is mixed and balanced, and the printing effect is excellent.
