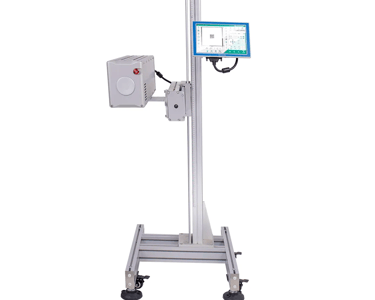

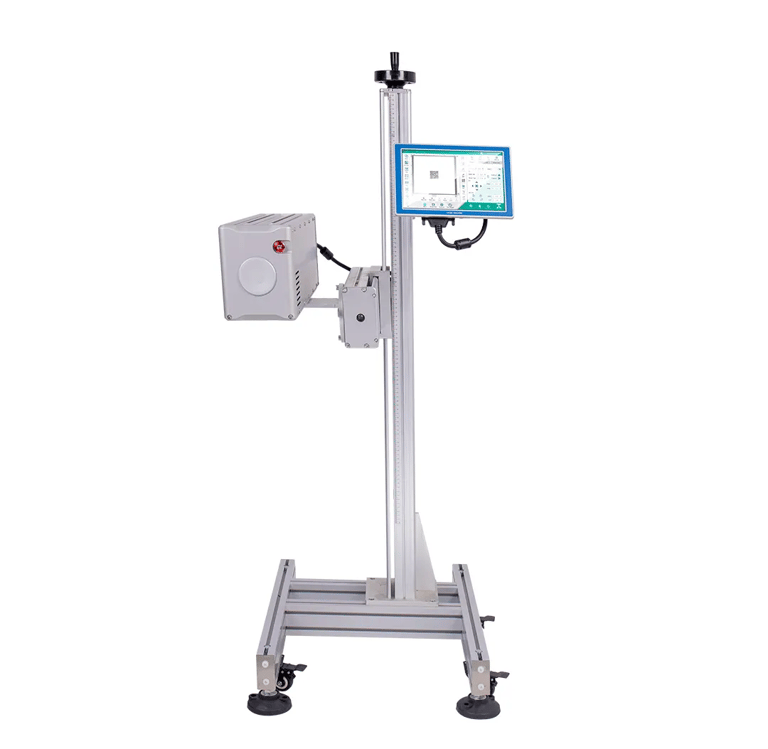

L1000 Series 30W CO₂ Laser Marking Machine

• Fiber marking laser machine has a good beam quality, small size, speed, long working life, flexible and convenient installation and maintenance-free and other main features.

• Mainly used in a variety of metals and degree layer, computer accessories, industrial bearings, sanitary ware, medical equipment, glasses and clocks, automotive parts, electronics and communication products, aerospace devices, hardware molds and other depth, smoothness, fineness of the requirements of the field of high.

  Request a quotation




Model:
L1020F-1064F-C-IP43

Laser Type:
Fiber Laser

Laser Wavelength:
1064 nm

Laser Power:
18 W

Positioning Method:
Automatic red-light positioning, focusing, and preview

Marking Speed:
Depends on the surface material and the size and complexity of the marking content

Number of Marking Lines:
Unlimited

Character Height:
0.6 mm to maximum engraving range

Languages:
English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Russian, Spanish, Persian, and other languages

Graphic Formats:
JPG, BMP, PNG, PLT, DXF, DOT, etc.

Other Data Formats:
Supports multiple variable data formats, including date, time, serial number, random number, VIN code, file data, communication-received data, and scanning gun data; supports one-dimensional and two-dimensional barcodes, arc text, and more

Marking Range:
Standard (100 × 100 mm), optional (30 × 30 mm / 50 × 50 mm)

Galvanometer Scanner Head:
High-precision 2D digital scanning system

Controller:
10.1-inch color display, industrial-grade touch screen

Operating System:
Embedded Linux secure operating system

Cooling System:
Air cooling

Host Dimensions (Length × Width × Height):
342 × 105.2 × 223.6 mm (including bracket)

Protection Class:
IP43

Product Speed Monitoring:
Supports AB phase encoder

User Interface:
Photoelectric signal, encoder signal, alarm signal, I/O (NPN, PNP, switch-type sensors), RS232 communication, etc.

Power Requirements:
100 V – 240 V / 50 – 60 Hz

Machine Power:
≤ 150 W

Material:
Aluminum alloy

Operating Temperature / Humidity:
Ambient temperature 0°C – 45°C, humidity < 95%, non-condensing, vibration-free

Laser Life:
Up to 100,000 hours

Packaging Dimensions (Length × Width × Height):
640 × 400 × 310 mm

Machine Gross Weight:
21.75 kg

Machine Parameters
