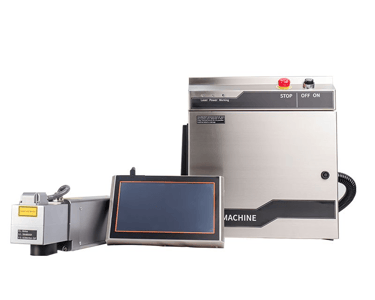

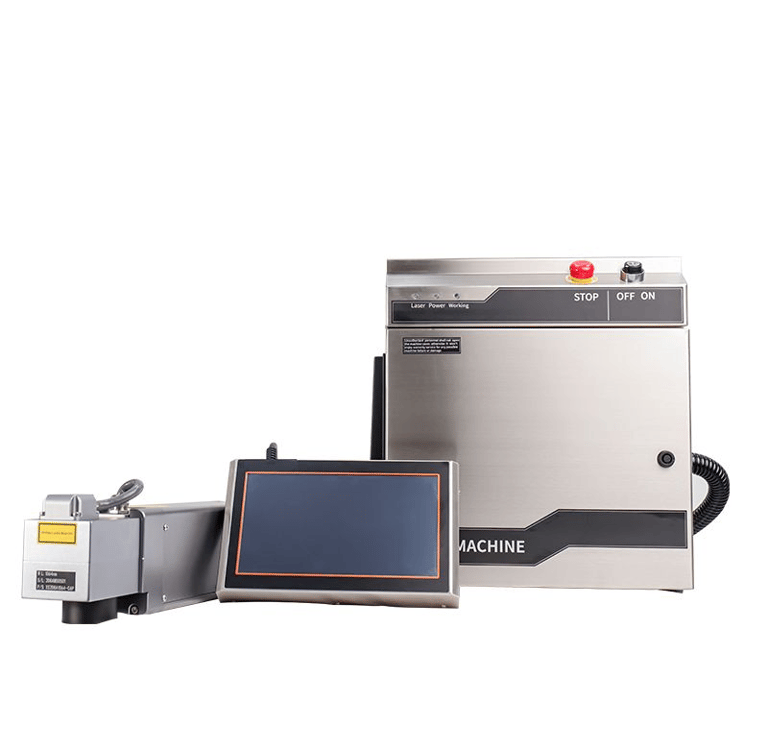

K Series UV Laser Marking Machine

• Fiber optic printers can be applied to metals or high hardness materials, such as ceramics and metals

• There are no consumables.

Model Type:
L1003U-355W-J-IP54
L1003U-355F-J-IP43
L1005U-355W-J-IP54
L1005U-355F-J-IP43

Laser Type:
UV Laser

Laser Wavelength:
355 nm

Laser Power:
3 W / 5 W

Positioning Method:
Automatic red-light positioning, focusing, and preview

Marking Speed:
Depends on the surface material and the size and complexity of the marking content

Number of Marking Lines:
Unlimited

Character Height:
0.6 mm to maximum engraving range

Languages:
English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Russian, Spanish, and other languages

Graphic Formats:
JPG, BMP, PNG, DXF, DWG, PLT, AI

Barcodes:
EAN8, EAN13, CODE39, CODE128, GS1-128

Marking Range:
Standard (110 × 110 mm), optional (70 × 70 mm to 300 × 300 mm)

Galvanometer Scanner Head:
High-precision 2D digital scanning system

Controller:
10.1-inch color display, industrial-grade touch screen

Operating System:
Embedded Linux secure operating system

Cooling System:
Air cooling

Host Dimensions (Length × Width × Height):
668 × 160 × 189 mm

Protection Class:
IP43 / IP54

Product Speed Monitoring:
Supports AB phase encoder

User Interface:
Photoelectric signal, encoder signal, alarm signal, I/O (V/O, NPN, PNP, switch-type sensors), RS232 communication, etc.

Power Requirements:
100 V – 240 V / 50 – 60 Hz

Machine Power Consumption:
≤ 900 W

Machine Material:
Aluminum alloy

Operating Temperature / Humidity:
Ambient temperature 0°C – 45°C, humidity ≤ 95%, non-condensing, vibration-free

Laser Life:
Normal usage life of 2 – 3 years

Packaging Dimensions (Length × Width × Height):
900 × 390 × 320 mm

Machine Gross Weight:
22.6 kg

Machine Parameters
