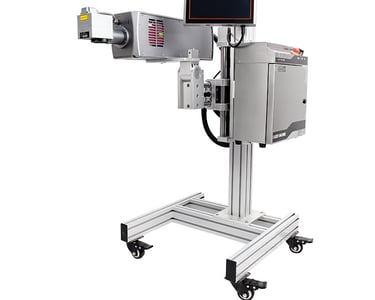

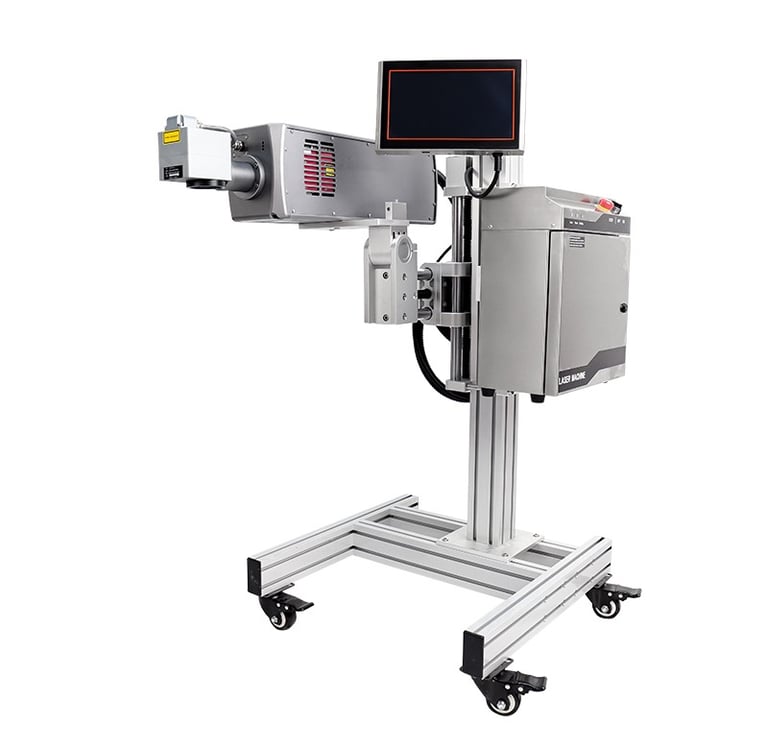

K Series CO₂ Laser Marking Machine

• The laser marking machine consists of a main beam, a controller, and a screen.

• There are different types of external ports that support IO communication

• RS232 communication, RJ45 interface, image and vector image import.

• The machine is equipped with a 10.1-inch screen, which is easy to learn and operate.

• The printing quality of each material is very high.

Main Control:
Split 10-inch operation screen

Supported Formats:
PLT, PNG, JPG, BMP

Total Machine Power:
900 W

Voltage Input:
110 V – 220 V / 50 – 60 Hz

Cooling Method:
Air cooling / water cooling

Model:
KC030 / 60H / E / D

Laser Power:
30 W / 60 W

Laser Wavelength:
10.6 μm / 10.2 μm / 9.3 μm

Scanning Galvanometer:
High-speed, high-precision scanning system

Marking Range:
110 × 110 mm (optional)

Application Range:
Plastics, glass, and non-metallic materials

System Language:
Supports multi-national language operating systems

Line Speed:
0 – 300 m/min (depending on marking content and material)

Machine Parameters
