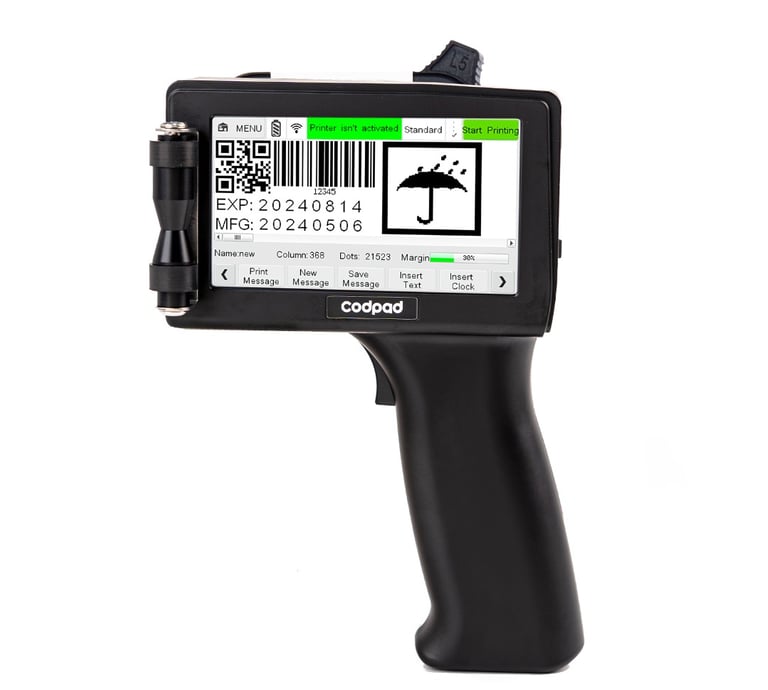

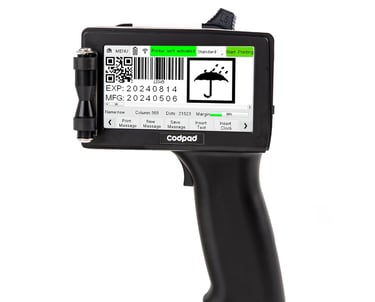

G60 Handheld Inkjet Machine

• Supports traceability and high-speed dynamic database printing

• Independently developed ultra-high-speed printing management system for rapid printing response.

• Efficient and flexible dynamic database printing functionality, capable of printing multiple groups of dynamic information in sequence.

• Robust dynamic QR code and barcode capabilities to meet various coding application needs.

• Built-in advanced ink droplet consumption algorithm to instantly calculate printing costs for customers.

Printing Parameters

Print resolution: Up to 300x300 DPI

Printing height: 1 - 25.4mm

Print speed: Up to 60m/min

Cartridge chip: RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount

Ink color: Black, white, red, yellow, blue, green, invisible, UV

Ink type: 42ml food grade, water - based, oil - based, weak solvent, solvent ink cartridge, large capacity ink continuous supply system

Printing content: Text, time, date, image, database, serial number, dynamic barcode, QR code

Printing material: Cartons, plastics, metals, plates, pipes, stones, wires & cables, electronic components, auto parts, industrial chemical packaging, pharmaceutical and food, gift packaging

Machine Parameters

Operating system: Embedded FreeRtos real-time operating system

Display: 4.3 - inch color display, industrial touch screen

Data interface: TYPE-C charging interface, USB

External interface: WIFI module (mobile APP wireless control)

Printhead installation: Built-in integrated printhead (including built-in hidden encoder)

Power: Input 100 - 240V AC; output 5V DC, 2A

Battery parameter: 7.2V/2600mAh lithium battery pack (built-in lithium battery)

Machine material: Industrial grade standard protective body (aerospace grade aluminum)

Working environment: Temperature 0 - 45℃/Humidity 30 - 70%Rh

Main hardware: NXP RT1052 industrial grade MCU

Machine specifications: 189.6mm 136.6mm 93.4mm

Support language: Chinese/English (supports multi - language customization)
