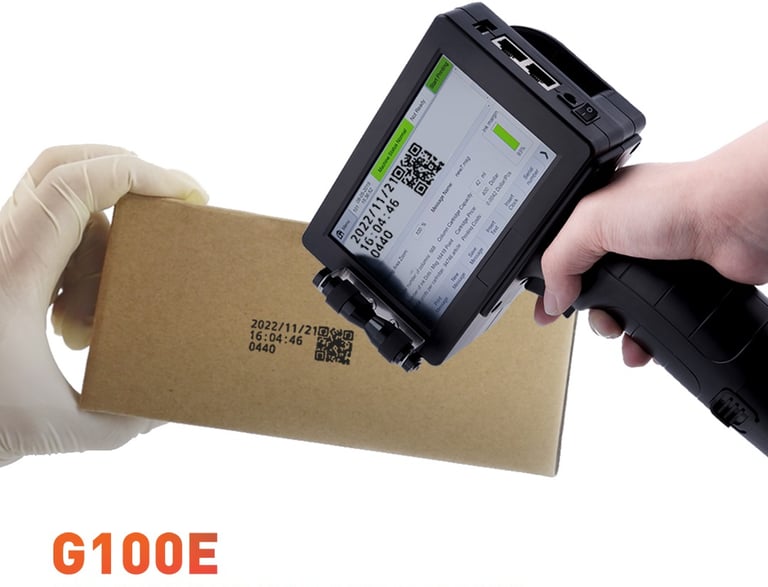

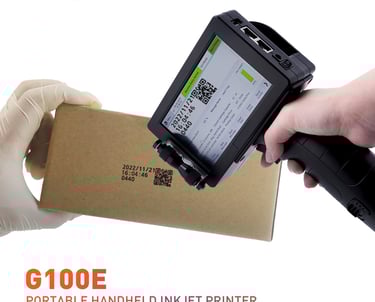

G100E Handheld Inkjet Printer

• Lightweight ABS body

• Handheld online dual use

• Calculate printing cost in real time

• Multiple sets of dynamic date printing

• ​Wireless keyboard and mouse control

• Multiple capacity batteries are available

Print resolution: Up to 300x300 DPI

Print height: 1 - 12.7mm

Print speed: Up to 406m/min

Cartridge chip: RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount

Ink color: Black, white, red, yellow, blue, green, invisible, UV

Ink type: 42ml food grade, water - based, oil - based, weak solvent, solvent ink cartridge, large capacity ink continuous supply system

Printing content: Multi - language characters, GS1 DataMatrix, dynamic traceability QR code, barcode, graphics, serial number, date, shift, counter, variable database, etc

Printing material: Cartons, plastics, metals, plates, pipes, stones, wires & cables, electronic components, auto parts, industrial chemical packaging, pharmaceutical and food, gift packaging

Operating system: Embedded Linux operating system

Display: 5 - inch color display, industrial touch screen

Data interface: USB, RS232

External interface: External optical sensor, external encoder, flip and reverse control

Power: Power adater 100 - 240V AC input 12.6V 3A DC output

Battery parameter: 12.6V/3350mAh lithium battery pack (removable)

Printhead installation: Built - in integrated printhead (including built - in hidden encoder)

Machine material: ABS UV curing spray

Working environment: Temperature 0 - 45℃/Humidity 30 - 70%Rh

Main hardware: Cortex - A7 1.2GHz dual - core processor, FPGA algorithm acceleration chipset

Machine specifications: 225mm 140mm 95mm

Support language: Supports more than 40 national and regional languages (Chinese/English/Arabic/Russian/French/Vietnamese/Korean, etc.)

Printing Parameters

Machine Parameters

• Built-in new integration hidden encoder

• Comfortable handle with ergonomic design

• Snap-on cartridge, more simple and reliable

• OEM product with powerful customization features

• Multiple sets of different information group printing

• 1-6 level grayscale adjustable, easy to blacken and print

• Switch between handheld and online, multi-scene application

• UV spray body with lightweight ABS material, sturdy and resistant

• The stable Linux security operating system, combined with the self-developed high-speed printing management system, can achieve an ultra-high-speed printing response time within 10 milliseconds per product.

• Powerful variable function of two-dimensional code.

• two-dimensional code applications to meet customer demand.

• Efficient and flexible variable database functions to

• meet various application requirements traceability

• Intelligent embedded Linux operating system

• provide professional and more user-friendly interface

• Embedded powerful drop consumption of specific algorithms tl

• instantly calculate printing costs for the customer

• Use of the Cortex-A7 1.2GHz Industrial Grade dual-core

• processor and FPGA algorithm acceleration chipset.

• In industrial applications, various conditions of the occasion

• more stable and reliable anti-interference ability better

• The print engine uses TlJ dedicated ASIC chips, a perfect

• match for a variety of original and licensed HP ink

• Professional cartridge preheat algorithm to ensure optimum print quality at high and low temperature environments

• Hardware Features

• Product Features

• Software Features
