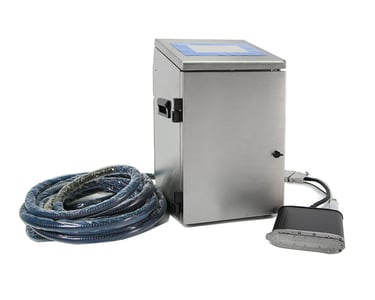

D130 Series DOD Large Character Inkjet Printerr

• D130 series large character inkjet printer adopts highly reliable Drop - On - Demand inkjet solenoid valve technology.

• Reliable, strong and durable performance can meet the needs of various industrial coding.

• The printer can work normally in a variety of harsh environments, such as dusty, wet, vibration environments.

• The high precision technology makes reliable performance and minimal maintenance.

Printhead duct:

3m/6m

Printing lines:

1-4 lines

Counter:

24 independent counters

Ink color:

Black, white, red, blue, green, yellow, invisible

Ink type :

Ketone-based,water-based,alcohol-based,acetone -based,pigment-based

Nozzle size:

80u、120u、150u、180u

Printing height:

7 dots:5-28mm 16 dots:5-64mm 32 dots:5-128mm

Printing distance:

3-30mm

Max.printing speed:

63m/min

Font:

5X6L 7X6L 7X10L 9X8L 9X11L 11X11L 12X12L 16X16L 24X24L 32X32L 11X11B 12X12B 16X16B 24X24B 32X32B

Printing material :

Permeable and non-permeable surfaces such as cartons,plasticsmetals,plates, pipes, stone,glass, electronic components, auto parts, industrial chemical packaging, paint comparison surfaces, etc.

Print content:

Text, time, date, pattern, shift, serial number, dynamic barcode/OR code, dynamic serial port data, dynamic database (other content can be added according to needs)

Printing Parameters

Machine Parameters

Main hardware:

American TI AM 3358 industrial grade CPU American Xilinx Spartan-6 industrial grade FPGA

Communication Interface :

Network port, USB, RS232

Support language:

Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)

Power parameters:

Input 100-240V AC

Machine material:

304 stainless steel

Protection level:

IP65

Operation system:

Embedded Linux secure operating system

Display screen:

7-inch color display, industrial touch screen

Rated power:

120W

Memory:

256M

Machine specifications:

297mmX309.37mmX502.46mm(length*width*height)

Working environment:

Temperature0-45C/Humidity 30-70% Rh

New weight:

16kg

External interface :

Photocell, encoder, alarm light, inforation control

Certificates:

CE,ROHS, EAC
