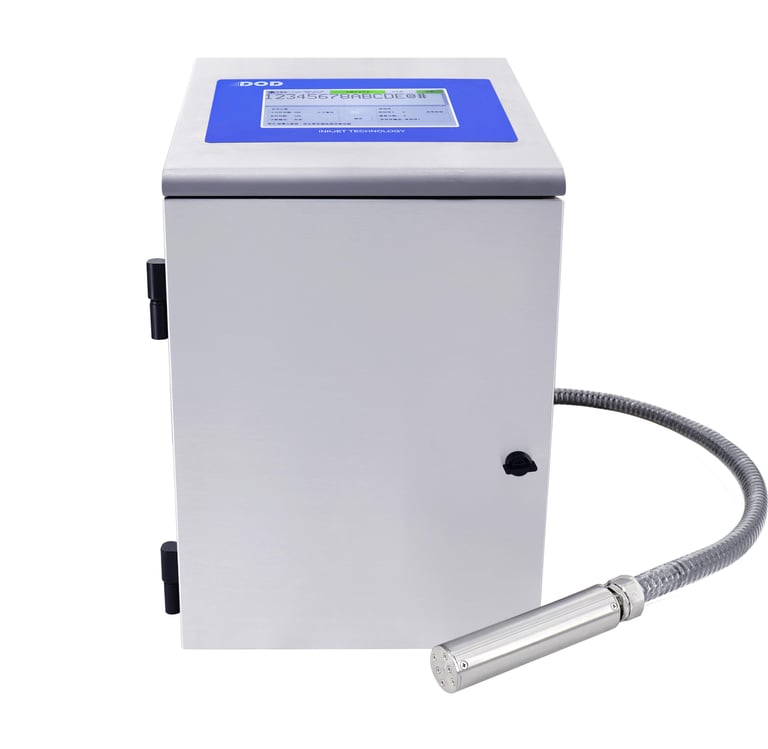

D100 Series DOD Large Character Dotting Inkjet Printer

• The D100 Series employs Drop-On-Demand (DOD) solenoid valve technology to achieve precise, high-speed coding (Max 300 dots/s) on metal, plastic, glass, and uneven surfaces, even in dusty, wet, or vibrating environments.

• It features a 7-inch industrial touchscreen, 40+ language support, and CE/ROHS/EAC certifications, making it ideal for automotive, electronics, and chemical industries needing durable, low-maintenance solutions.

Printhead duct: 3m/6m

Printing lines: 1-4 lines

Nozzle specifications: 80µ, 120µ, 150µ

Printing height: 2-5mm

Printing distance: 1-60mm

Max. printing speed: 300 dots/s

Counter: 24 independent counters

Ink color: Black, white, red, blue, green, yellow, invisible

Ink type: Ketone-based, water-based, alcohol-based, acetone-based, pigment-based

Print content: Dots, lines

Printing materials: Permeable/non-permeable surfaces (cartons, plastics, metals, plates, pipes, stone, glass, electronic components, auto parts, industrial chemical packaging, paint comparison surfaces, etc.)

Printing Parameters

Machine Parameters

Operation system: Embedded Linux secure operating system

Display screen: 7-inch color display, industrial touch screen

Communication interface: USB, RS232, network port

Protection level: IP65

Power parameters: Input 100~240V AC

Rated power: 120W

External interface: Photocell, encoder, alarm light, information control

Memory: 256M

Material: 304 stainless steel

Machine specifications: 297mm×309.37mm×502.46mm (L×W×H)

Working environment: Temperature 0-45°C, Humidity 30-70% Rh

Certificates: CE, ROHS, EAC

New weight: 16kg

Main hardware: American TI AM3358 industrial-grade CPU,American Xilinx Spartan-6 industrial-grade FPGA

External interface details: Optical sensor, encoder, alarm light, external serial number control, I/O, information selection/inversion

Languages: Supports >40 languages (Chinese, English, Arabic, Danish, German, Russian, French, etc.)
